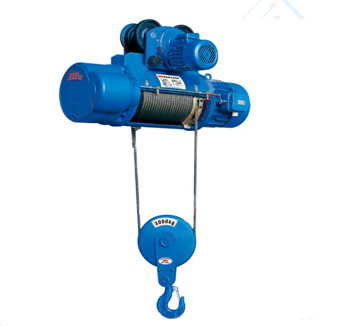

CD₁、MD₁型鋼絲繩電動葫蘆是一種重量輕、結構緊湊的輕小型起重設備，機構零部件通用性強，具有使用維修方便等優點。減速器采用硬齒面?zhèn)鲃?dòng)設計，壽命長，機械效率高；電機采用錐形轉子制定電機，具有上下雙向安全限位裝置。MD₁型電動葫蘆具有快慢兩種起升速度，起吊平穩準確�？蓮V泛用于提升重物，一般安裝在單梁、直的或帶曲線的工字梁上，也可用于雙梁、龍門起重機或懸臂吊上，是工礦企業、鐵路、碼頭、倉庫中常用的起重設備。
　　安裝形式可分為固定式、電動運行式、懸掛式等。

CD₁、MD₁ wire hoist lifting equipment is a light weights, a Compact structure and a strong parts, With the advantages of easy repair and use. The speed reducer use of hard gear surface drive design, it has long life and high mechanical efficiency. Cone rotor motor development has two-way security levels limiters. MD₁ has two lifting speed, faster and slower, Lifting smoothly and accurately. CD₁、MD₁ wire hoist can be widely used for lifting heavy goods, or installed in the single-girder\straight girder\ curves beam cranes, which can also be used for double girder crane, the semi-goliath crane, cantilever crane or hoist. It’s the equipments of the mining industry, railways, terminals and warehouses.

The type of installation can be divided into fixed, electric-operation and hanging.

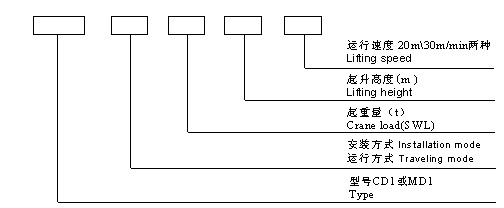

產品型號的說明：

(1)CD₁型——表示只有一個起重速度(8m／min)的電動葫蘆。

CD₁——only one lifting speed electric hoist(8m/min)
(2)MD₁型——表示同時有二個起重速度(8m／min及0.8m／min)的電動葫蘆。

MD₁——Two lifting speed (8m/min and 0.8m/min) electric hoist

(3)CD₁型電動葫蘆可分為A、B、C、D四種型式。

CD₁ Electric hoist can be divided into A, B, C, D type。
